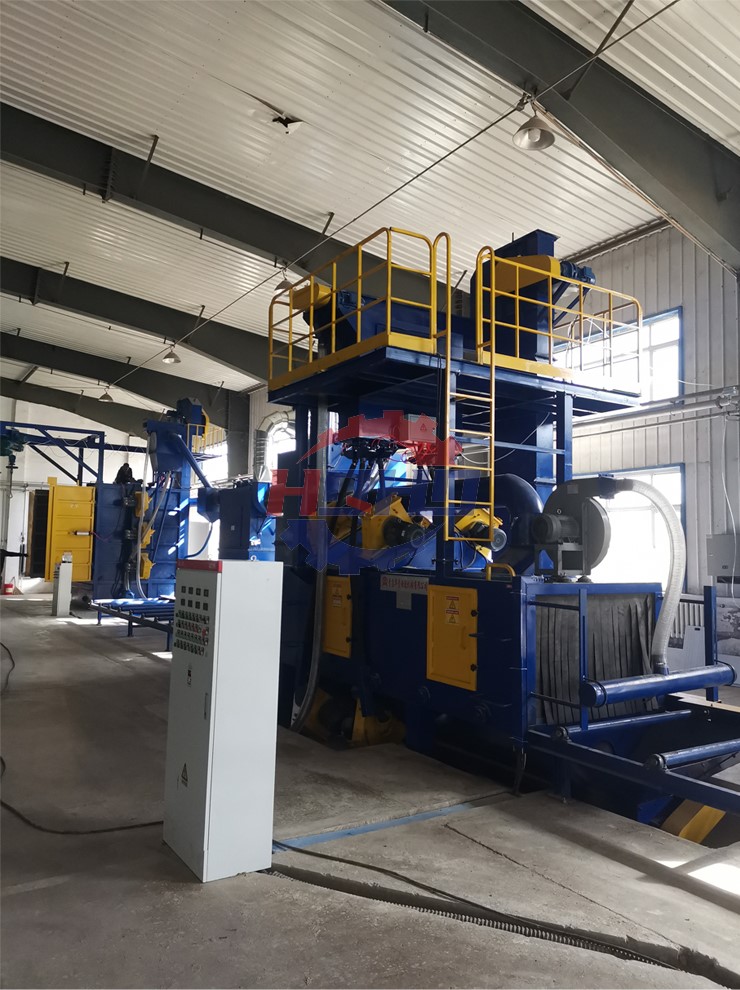

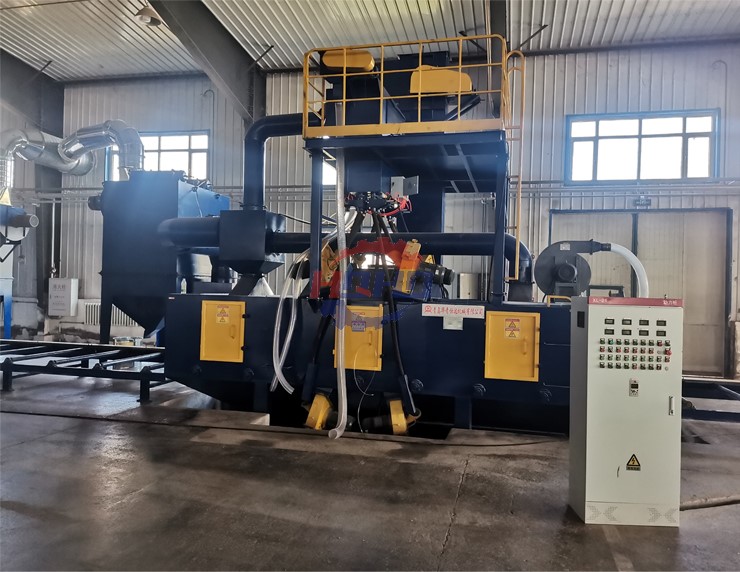

Roller Conveyor Through-Type Shot Blasting Machine

Roller Conveyor Through-Type Shot Blasting Machine is an automatic shot blasting equipment designed for cleaning steel plates and profiles. After the shot blasting process, surface impurities such as scale, paint, and other contaminants are removed, revealing the metal's natural color. Additionally, shot blasting can relieve internal stress in the workpiece, enhancing its fatigue resistance. Furthermore, by eliminating surface impurities and creating a favorable roughness for coating, shot blasting improves the adhesion of surface coatings during painting, extends the coating's lifespan, and enhances both the surface and internal quality of the workpiece.

Pre-treatment of steel through shot blasting can improve the corrosion resistance of mechanical products and metal components, increase the fatigue resistance of steel plates, and prolong their service life. It also optimizes the surface condition of the steel, facilitating precision cutting with CNC machines and accurate blanking. Moreover, since the steel's shape is relatively regular before processing, it is conducive to mechanical rust removal and automated painting. Therefore, using steel pre-treatment significantly enhances the efficiency of cleaning operations, reduces labor intensity, and minimizes environmental pollution.

Technical Parameters

Type	unit	QH696	QH6912	QHG6912	QHG6915	QH6918	QHG6920
Effective Blasting Width	mm	600	1200	1200	1500	1800	2000
Entrance Dimensions (W×H)	mm	800×1400	1400×1600	1400×2000	1700×1600	2000×1700	2200×2400
Operating Speed for Cleaning Sa2.5 ISO8501	m/min	0,5–3	0,5–3	0,5–3	0,5–3	0,5–3	0,5–2
Number of Wheels × Power	kw	8×7.5/11	8×11/15	8×11/15	8×11/15/18.5	8×11/15	12×11/15/18.5
Wheel Installation as per Order	kw	-	-	10×11/15	10×11/15/18.5	10×11/15/18.5	14×11/15/18.5
Abrasive Initial Filling Capacity	kg	4000	4000	4000	4500	8000	11000
Processed Length of Workpiece	mm	1200~12000	1200~6000	1200~12000	3000~12000	2400–12000	2400~18000
