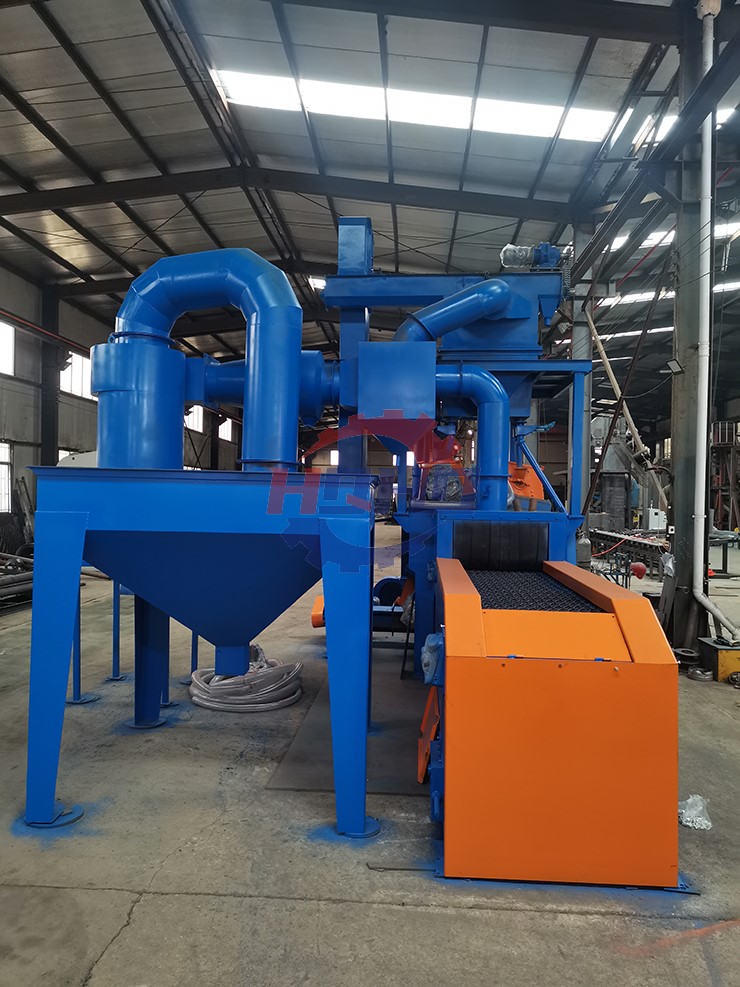

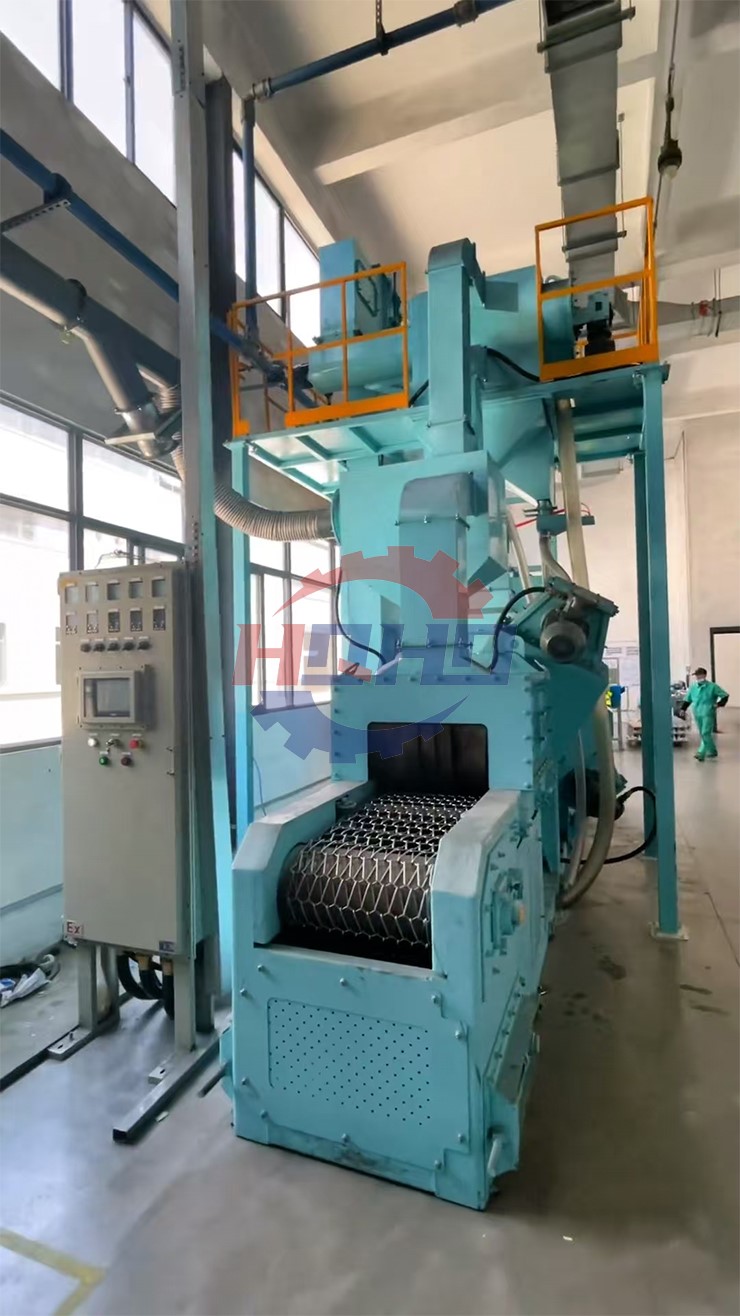

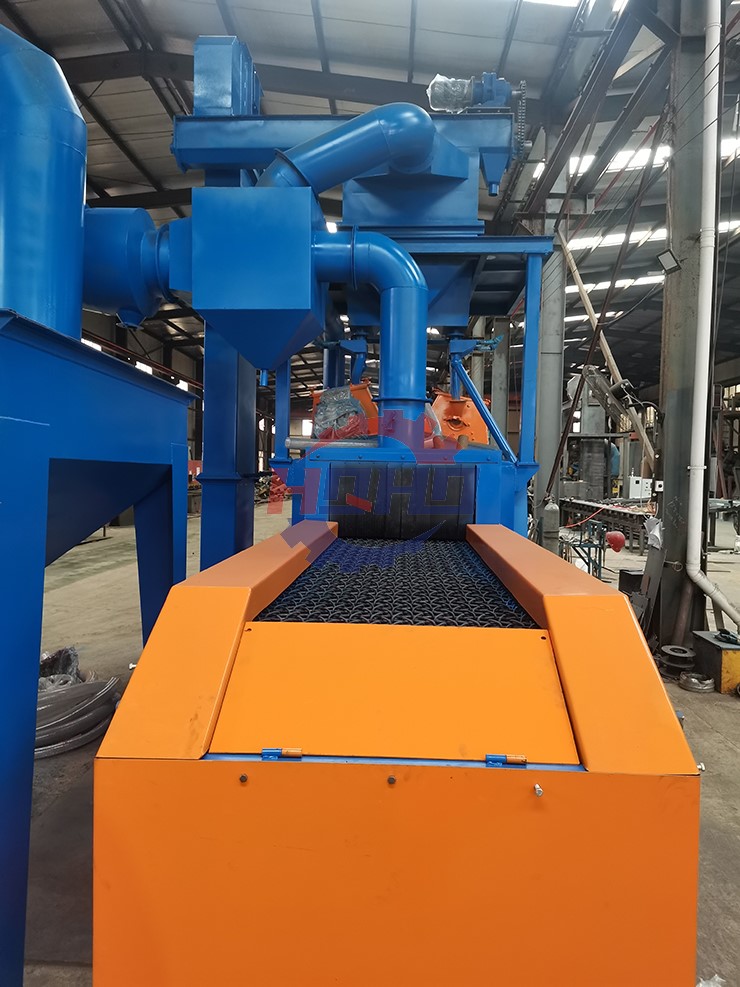

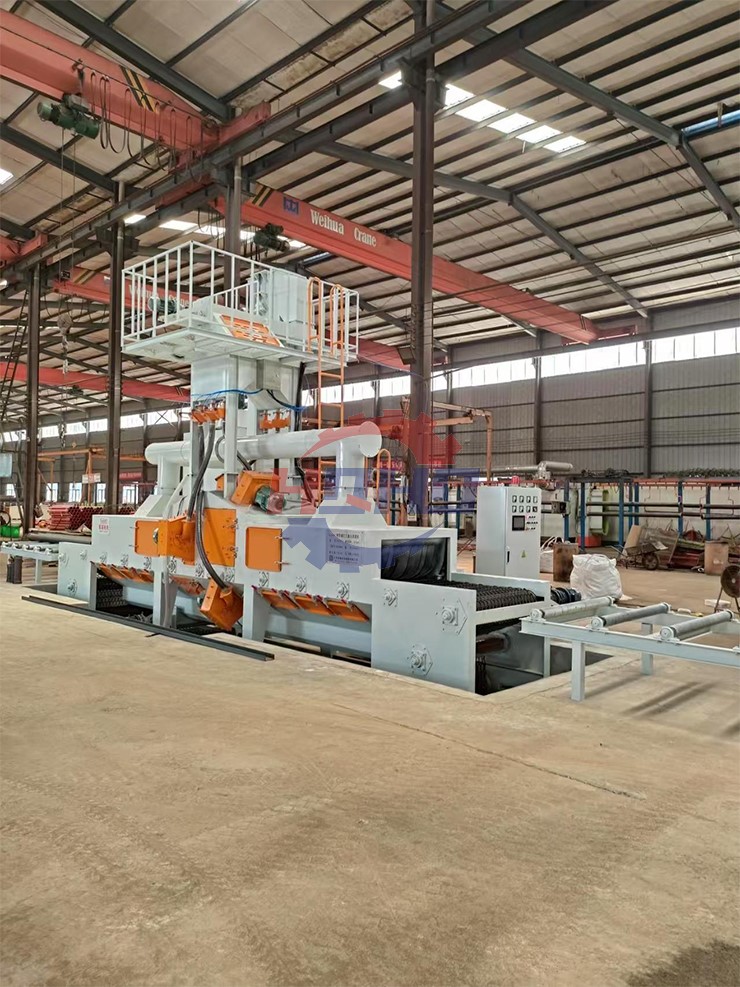

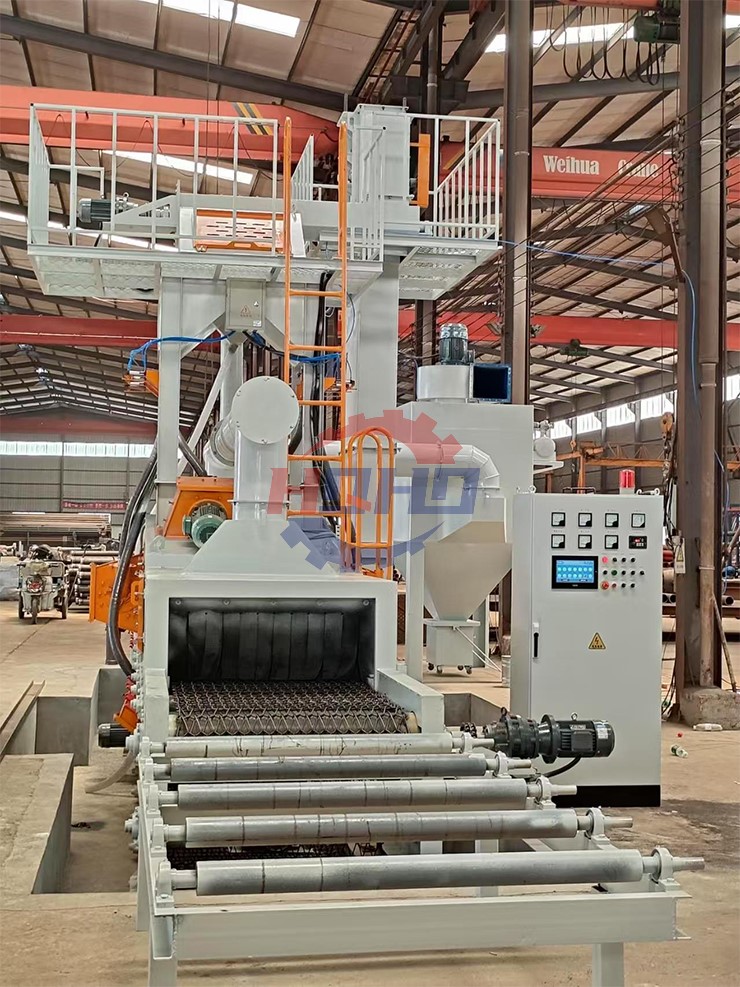

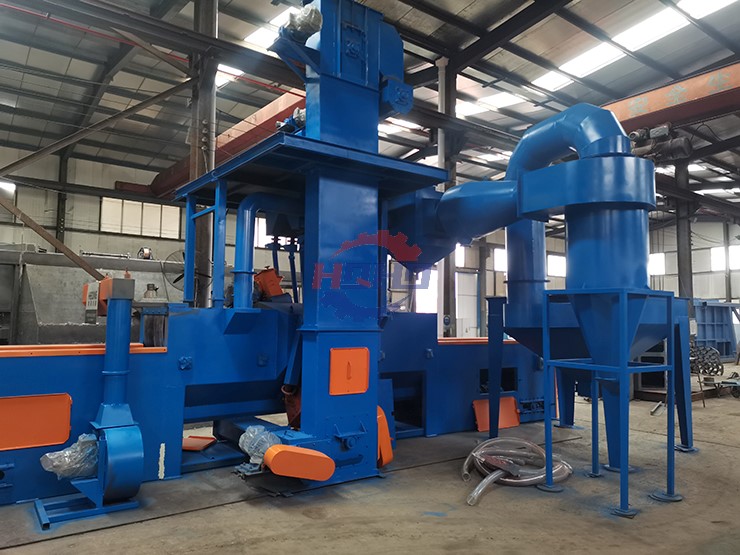

Mesh Belt Shot Blasting Machine
The **Mesh Belt Shot Blasting Machine** is widely used for cleaning large or delicate workpieces such as forgings, steel castings, and aluminum castings that are unsuitable for processing in drum or crawler-type shot blasting machines. This equipment can be easily integrated into automated conveyor systems and is capable of rapidly processing large quantities of workpieces. As the workpieces pass through the machine, both their upper and lower surfaces are simultaneously subjected to shot blasting for thorough cleaning.
Technical Parameters
Item

QH-WD600

QH-WD800

QH-WD1000

QH-WD1200

QH-WD1600

Effective Cleaning Width (mm)

600

800

1000

1200

1500

Inlet Size (mm)

600*400

800*500

1000*500

1200*600

1500*600

Number of Wheels

4

4

4/8

4/8

4/8

Wheel Motor Power (kw)

7.5

11

11/15

11/15

11/15

Base No No No No Yes
Weight (T)

20

20.4

33

41

53.2
