Rotary Table Shot Blasting Machine

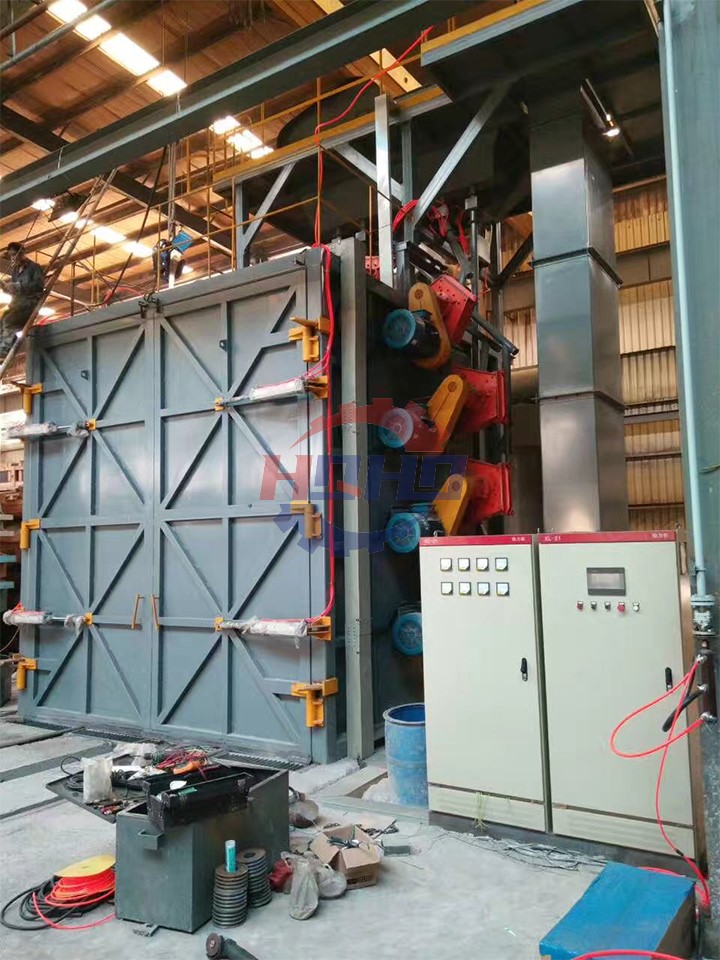

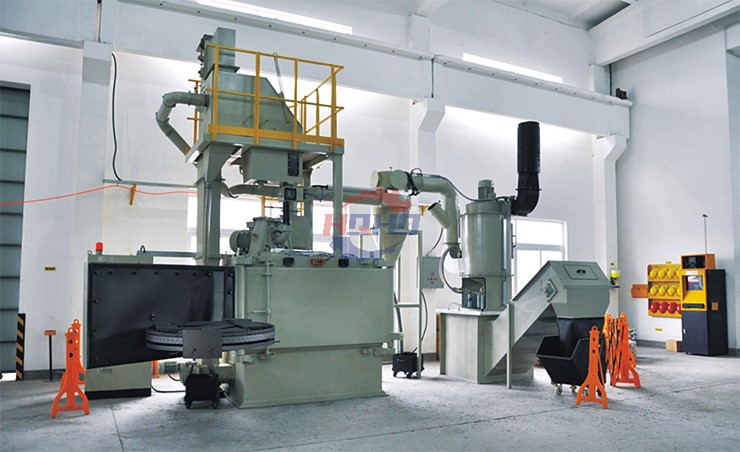

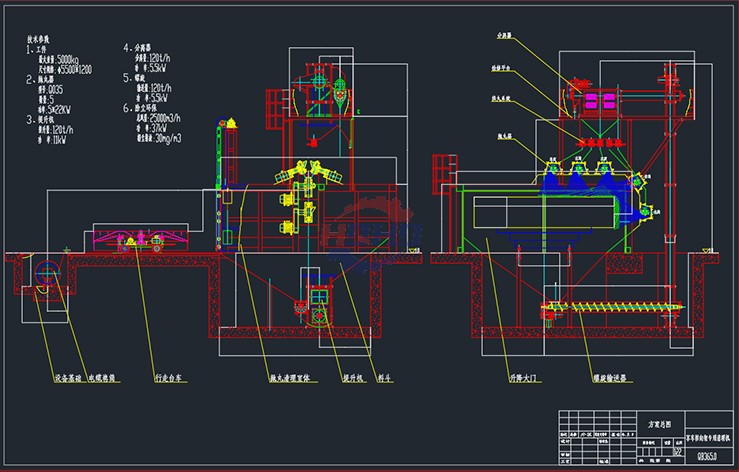

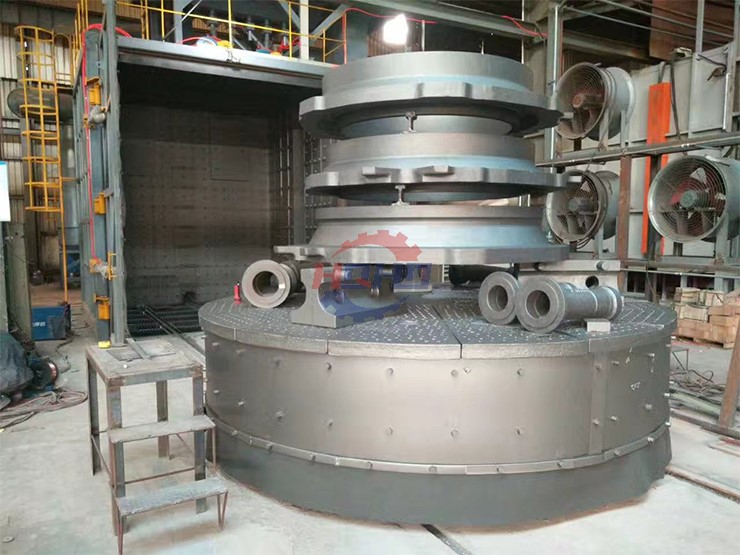

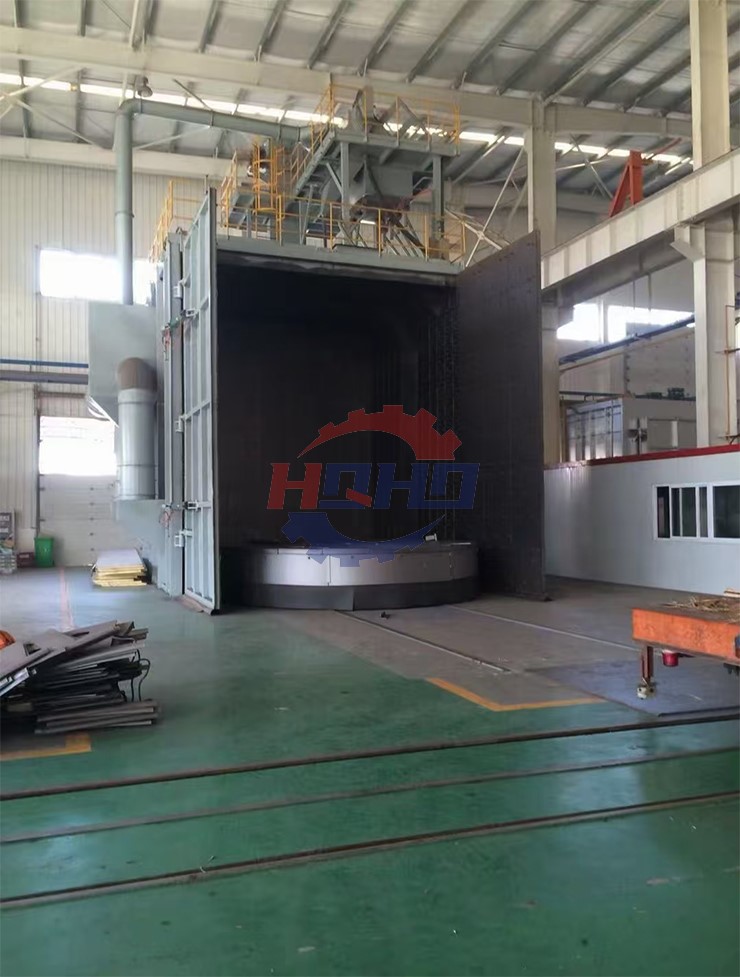

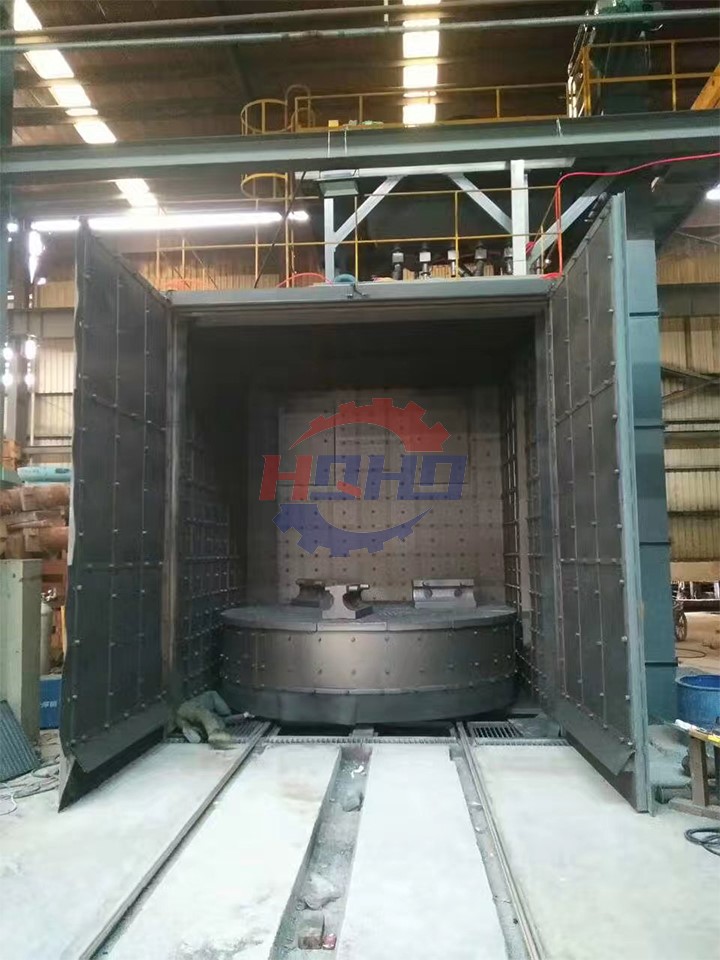

The **Rotary Table Shot Blasting Machine** primarily consists of a chamber, rotary table, transmission system, separator, elevator, abrasive feeding device, and shot blasting unit. A high-speed rotating blasting unit located at the top of the chamber performs all-around blasting on the workpiece. As the workpiece rotates out of the chamber with the table, the cleaning effect can be directly observed, facilitating the next steps in the process.

The transmission system drives the rotation of the scraper plate, which directs the abrasive media through the flow pipe to the lower part of the elevator. The elevator then lifts the media to the separator for separation. Intact abrasive media are continuously supplied to the blasting unit through the abrasive feeding pipe and gate, while broken media and dust enter their respective pipelines for secondary separation.

The transmission mechanism of the **Rotary Table Shot Blasting Machine** is driven by a cycloidal reducer, which powers a friction wheel. Through a clutch mechanism, the friction wheel drives the rotary table, ensuring smooth rotation. When the workpiece rotates out of the chamber, it can be directly adjusted or flipped for further processing. Additionally, based on the type of workpiece being cleaned and the difficulty of handling, the clutch handle can be operated to disengage the friction wheel from the rotary table, stopping its rotation. After adjusting the workpiece, the handle can be repositioned to restart the table's rotation.

Rotary Table Shot Blasting Machine For Flat Metal Parts is suitable for surface cleaning and strengthening of steel structural parts and casting ,and is especially suitable for surface rust removal and cleaning of surface scale of thick billet steel.Turntable Shot Blasting Machine is widely used in foundry ,forging,mechanical and steel industries.

Turntable Shot Blasting Machine is suitable for surface rust removal and strengthen of engine connecting bar, gear, shell cover wall, clutch friction part.

Technical Parameters

Type item		Unit	HQ3512D	ZHQ3512F	HQ3525G
Size of cleaning chamber		mm	Ø1350*560	Ø1350*860	Ø2654*560
size of cleaning piece		mm	600250250	600250250	1000500250
Turn table	loading capacity	kg	400	400	1000
Turn table	diameter	mm	Ø1200	Ø1200	Ø2500
Blasting apparatus	abrasive flow rate	kg/min	200	2*150	2*250
Blasting apparatus	power	kw	11	7.5*2	15*2
Lifiting amount of elevating conveyor		t/h	15	15	30
Separating amount of separator		t/h	15	15	30
Abrasive initial filling		kg	400	350	1500
